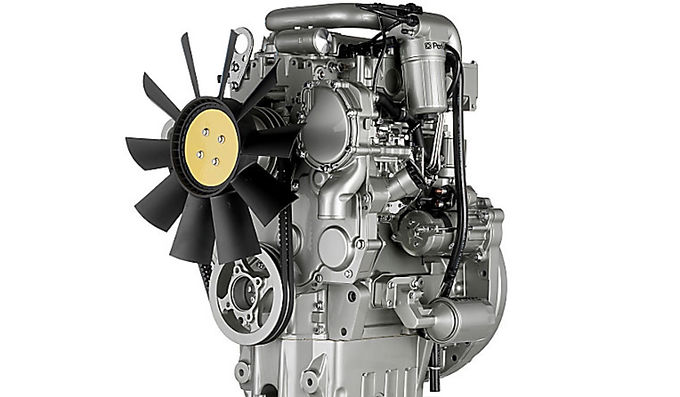

1103D-33

Perkins 1100 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1100 Series	Industrial Diesel Engine	DC	3	36.9 kW	189 Nm @ 1400 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2200 RPM	36.9 kW	UN ECE R96 Stage IIIA	4 Stroke	105 mm	127 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
3.3 L	19.25:1	Natural	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
546 mm	571 mm	826 mm	264 kg

Rotation	Alternator Efficiency	Switchable
