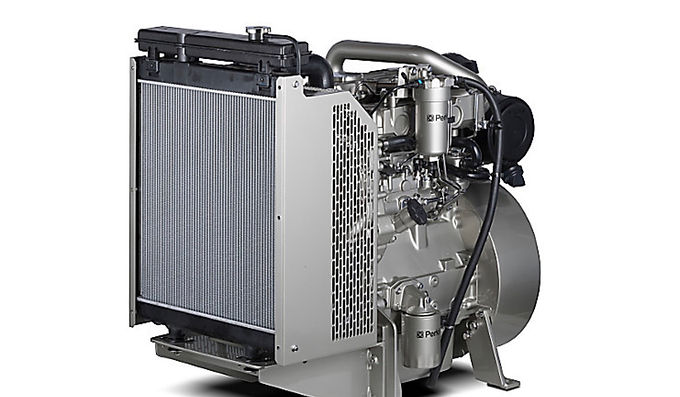

1103D-33G

Perkins 1100 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1100 Series	Genset		3

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
1500/1800 RPM		EU Stage IIIA		105 mm	127 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
3.3 L	19.25:1	Natural	Direct Injection		Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
				30 - 38 kWm	32-40 kVA (25-32 kWe)

Rotation	Alternator Efficiency	Switchable
Counter-Clockwise	89%	Yes
