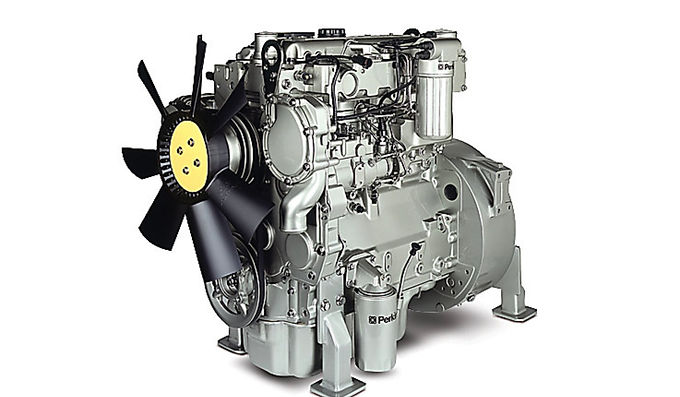

1104A-44

Perkins 1100 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1100 Series	Industrial Diesel Engine	RR	4	63.5 kW	293 Nm @ 1200 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2200 RPM	50 kW	Non-Certified	4 Stroke	105 mm	127 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
4.4 L	19.3:1	Natural	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
768 mm	558 mm	795 mm	357 kg

Rotation	Alternator Efficiency	Switchable
