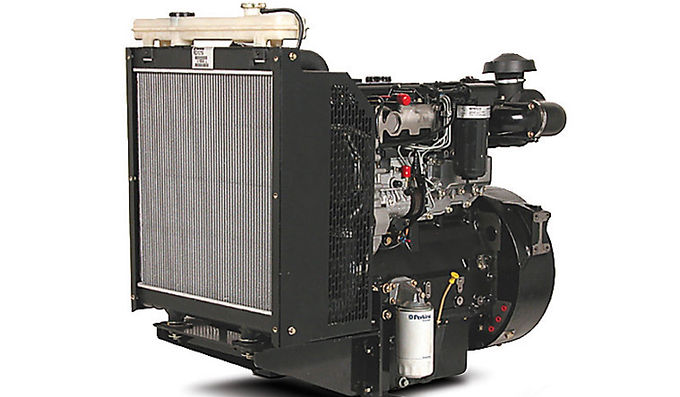

1104C-44G

Perkins 1100 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1100 Series	Genset		4

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
1500/1800 RPM		EU Stage II/U.S. EPA Tier 2		105 mm	127 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
4.4 L	19.3:1	Natural	Direct Injection		Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
1163 mm	623 mm	951 mm	386 kg	39-54 kWm	44-59 kVA (35-47 kWe)

Rotation	Alternator Efficiency	Switchable
Counter-Clockwise	90%	Available for Some Power Nodes
