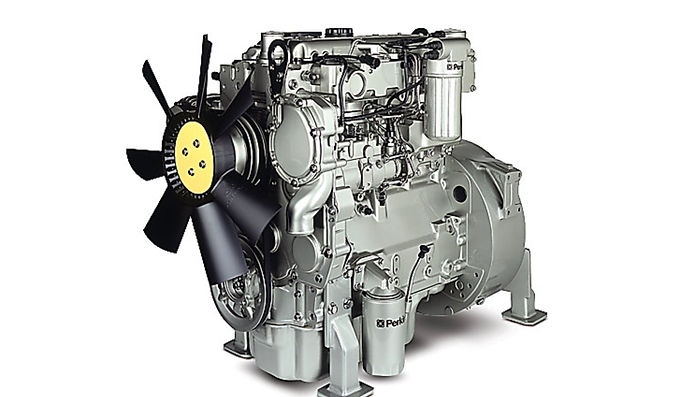

1104C-44T
Perkins 1100 Series
Engine Series | Engine Type | Engine Build | Cylinders | Maximum Power | Maximum Torque |
|---|---|---|---|---|---|
Perkins 1100 Series | Industrial Diesel Engine | RG | 4 | 74.5 kW | 415 Nm @ 1350 RPM |
Perkins 1100 Series | Power Unit | RG | 4 | 74.5 kW | 412 Nm @ 1400 RPM |
Rated Speed | Minimum Power | Emissions | Cycle | Bore | Stroke |
|---|---|---|---|---|---|
2300 RPM | 62 kW | EU Stage II/U.S. EPA Tier 2 equivalent | 4 Stroke | 105 mm | 127 mm |
2300-2400 RPM | 67 kW | EU Stage II/U.S. EPA Tier 2 equivalent | 4 Stroke | 105 mm | 127 mm |
Displacement | Compression Ratio | Aspiration | Combustion System | Rotation from Flywheel End | Cooling System |
|---|---|---|---|---|---|
4.4 L | 18.2:1 | Turbocharged | Direct Injection | Counter-Clockwise | Liquid |
4.4 L | 18.3:1 | Turbocharged | Direct Injection | Counter-Clockwise | Liquid |
Length | Width | Height | Dry Weight | Gross Mechanical Output | Typical Electrical Output |
|---|---|---|---|---|---|
663 mm | 597 mm | 810 mm | 372 kg | ||
1272 mm | 613 mm | 962 mm | 485 kg |
Rotation | Alternator Efficiency | Switchable |
|---|---|---|
