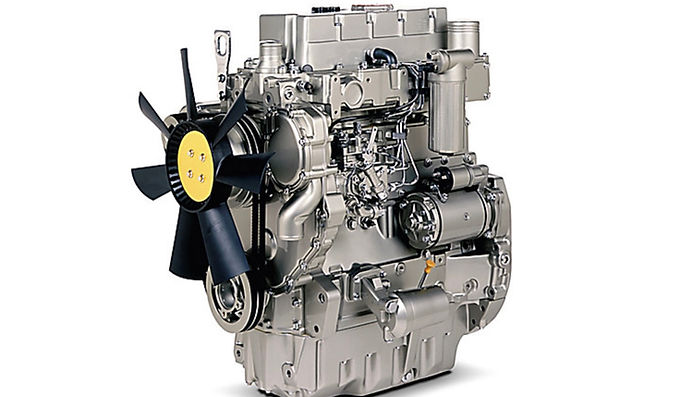

1104D-44

Perkins 1100 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1100 Series	Industrial Diesel Engine	NK	4	55.9 kW	265 Nm @ 1700 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2200 RPM	54 kW	UN ECE R96 Stage IIIA, China Nonroad Stage III	4 Stroke	105 mm	127 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
4.4 L	18.2:1	Natural	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
663 mm	470 mm	810 mm	357 kg

Rotation	Alternator Efficiency	Switchable
