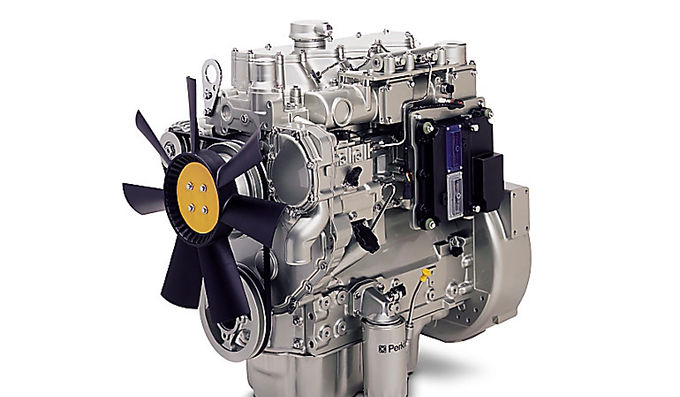

1104D-E44T

Perkins 1100 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1100 Series	Industrial Diesel Engine	NP	4	74.5 kW	420 Nm @ 1400 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2200 RPM	68 kW	UN ECE R96 Stage IIIA, China Nonroad Stage III	4 Stroke	105 mm	127 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
4.4 L	16.9:1	Turbocharged	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
631 mm	647 mm	823 mm	360 kg

Rotation	Alternator Efficiency	Switchable
