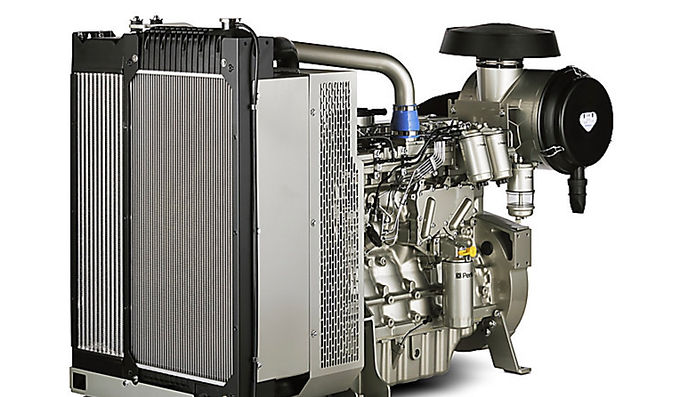

1106A-70TG

Perkins 1100 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1100 Series	Genset		6

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
1500/1800 RPM		Fuel Optimised		105 mm	135 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
7 L	18.2:1	Turbocharged	Direct Injection		Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
1648 mm	760 mm	1092 mm	739 kg	127-160 kWm	135-169 kVA (108-135 kWe)

Rotation	Alternator Efficiency	Switchable
Counter-Clockwise	91%	No
