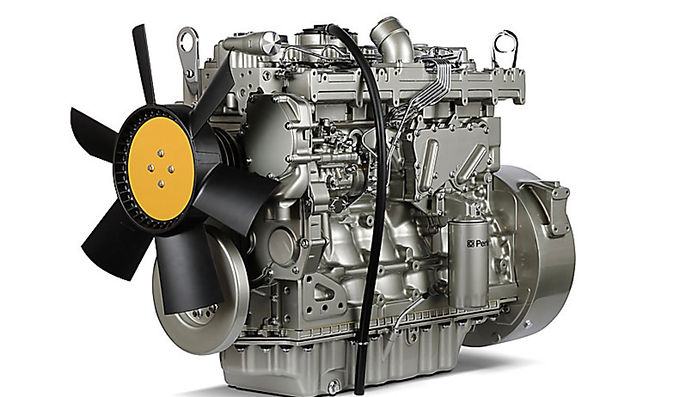

1106C-70TA

Perkins 1100 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1100 Series	Industrial Diesel Engine	PT Builds	6	162 kW	900 Nm @ 1400 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
1950-2200 RPM	112 kW	EU Stage II/U.S. EPA Tier 2 equivalent	4 Stroke	105 mm	135 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
7.01 L	18.2:1	Turbocharged Aftercooled	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
1140 mm	720 mm	820 mm	507 kg

Rotation	Alternator Efficiency	Switchable
