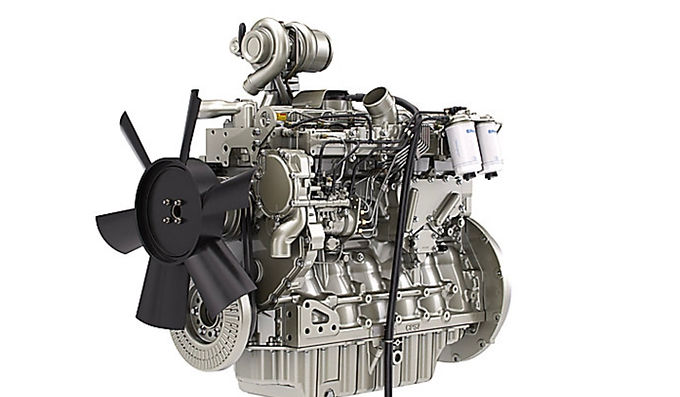

1106D-70TA

Perkins 1100 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1100 Series	Industrial Diesel Engine	PU Builds	6	129 kW	750 Nm @ 1300 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2000-2200 RPM	112 kW	UN ECE R96 Stage IIIA	4 Stroke	105 mm	135 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
7.01 L	18.2:1	Turbochearged Aftercooled	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
1140 mm	720 mm	820 mm	507 kg

Rotation	Alternator Efficiency	Switchable
