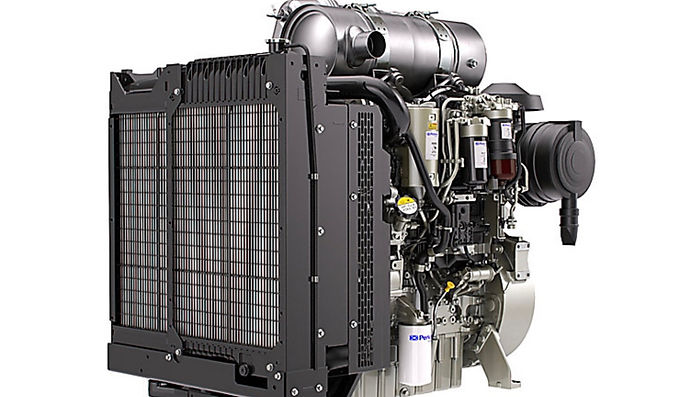

1204J-E44TA PU

Perkins 1200 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1200 Series	Industrial Power Unit	N/A	4	110 kW	560 Nm @ 1400 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2200 RPM	102.1 kW	EU Stage V, U.S. EPA Tier 4 Final	4 Stroke	105 mm	127 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
4.4 L	16.5:1	Turbocharged Aftercooled	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
1450 mm	835 mm	1289 mm	691 kg

Rotation	Alternator Efficiency	Switchable
