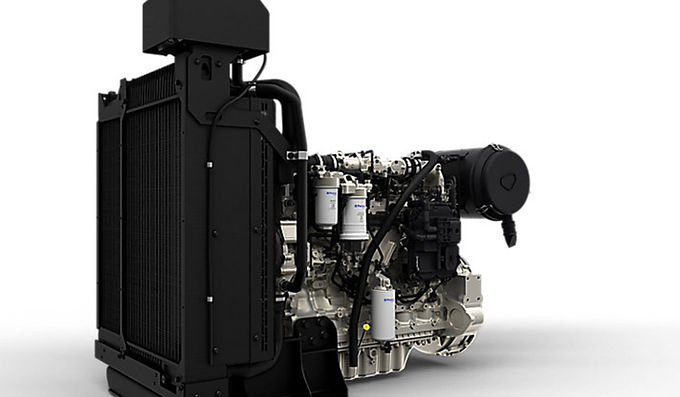

1206A-E70TTAG

Perkins 1200 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1200 Series	Genset		6

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
1500/1800 RPM		Fuel Optimised		105 mm	135 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
7.01 L	15.8:1	Twin Turbocharged Aftercoooled	Direct Injection		Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
1878 mm	949 mm	1426 mm	797 kg	186 -248.5 kWm	200-275 kVA (160-220 kWe)

Rotation	Alternator Efficiency	Switchable
Counter-Clockwise	89.5-92%	Yes
