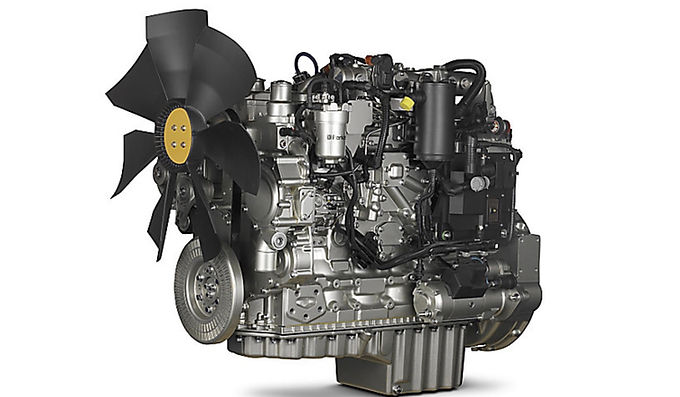

1206EA-E70TTA

Perkins 1200 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1200 Series	Industrial Diesel Engine	N/A	6	225 kW	1274 Nm @ 1400 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
1800-2200 RPM	151 kW	China NR IV	4 Stroke	105 mm	135 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
7 L	16.5:1	Series Turbocharged Aftercooled	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
1047 mm	911 mm	911 mm	751 kg

Rotation	Alternator Efficiency	Switchable
