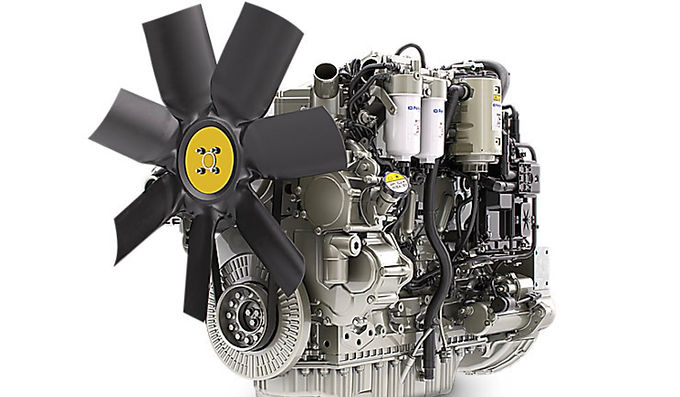

1206J-E70TA

Perkins 1200 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 1200 Series	Industrial Diesel Engine	N/A	6	151 kW	870 Nm @ 1400 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2200 RPM	129 kW	EU Stage V, U.S Tier 4 Final	4 Stroke	105 mm	135 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
7.01 L	16.5:1	Turbocharged Aftercooled	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
1064 mm	755 mm	905 mm	715 kg

Rotation	Alternator Efficiency	Switchable
