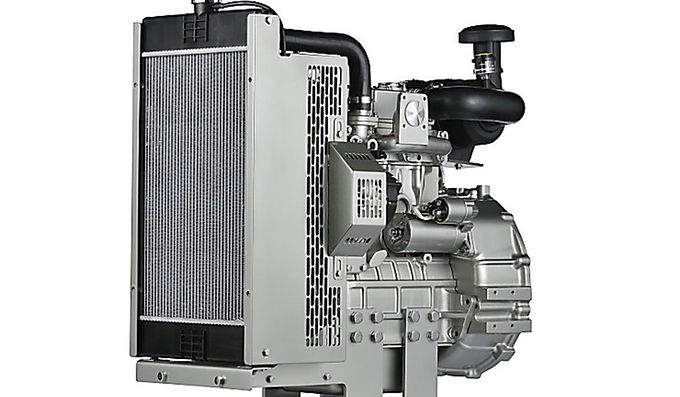

403D-15G

Perkins 400 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 400 Series	Genset		3

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
1500/1800/3000 RPM		EU Stage IIIA/U.S. EPA Tier 4 interim		84 mm	90 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
1.5 L	22.5:1	Natural	Indirect Injection		Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
820 mm	476 mm	791 mm	197 kg	12-19.7 kWm	13-24 kVA (10-19 kWe)

Rotation	Alternator Efficiency	Switchable
Counter-Clockwise	87-88%	No
