403F-07

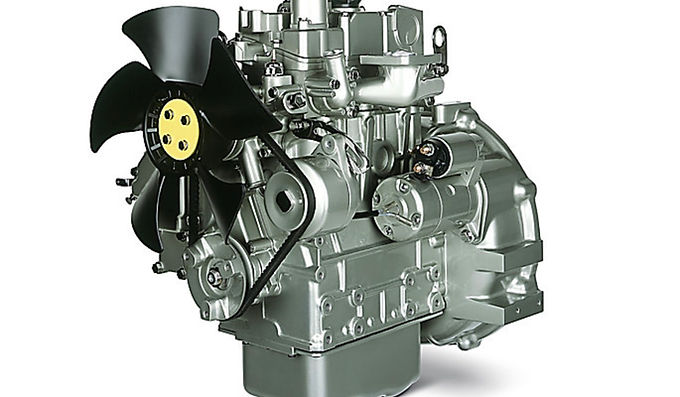

Perkins 400 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 400 Series	Industrial Diesel Engine	EH Builds	3	8.8 kW	41 Nm @ 2000 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2200 RPM	8.8 kW	U. S. EPA Tier 4 Final	4 Stroke	67 mm	72 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
0.76 L	23.5:1	Natural	Indirect Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
480 mm	371 mm	528 mm	71 kg

Rotation	Alternator Efficiency	Switchable
