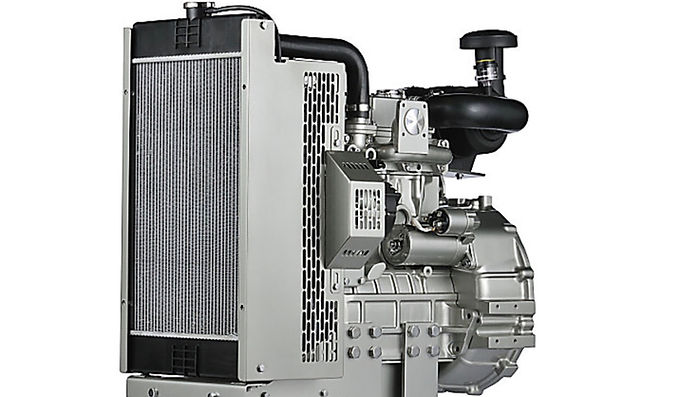

403J-07G

Perkins 400 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 400 Series	Genset		3

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
1500 RPM		EU Stage V		67 mm	72 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
0.7 L	23.5:1	Natural	Mechanical Indirect Injection		Watercooled

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
645 mm	442 mm	630 mm	87 kg	6.0-6.6 kWm	5.8-6.4 kVA (4.7-5.1 kWe)

Rotation	Alternator Efficiency	Switchable
Counter-Clockwise	83.20%	No
