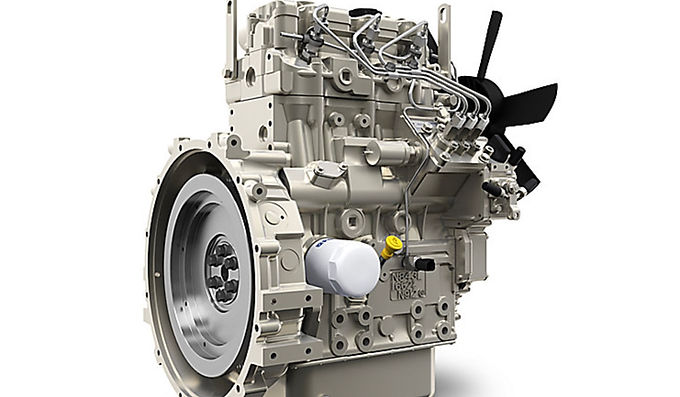

403J-17

Perkins 400 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 400 Series	Industrial Diesel Engine		3	18.4 kW	91.9 Nm @ 1600 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2200-2800 RPm	184. kW	EU Stage V	4 Stroke	84 mm	100 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
1.7 L	23.0:1	Natural	Indirect Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
572 mm	453 mm	643 mm	163 kg

Rotation	Alternator Efficiency	Switchable
