404D-22

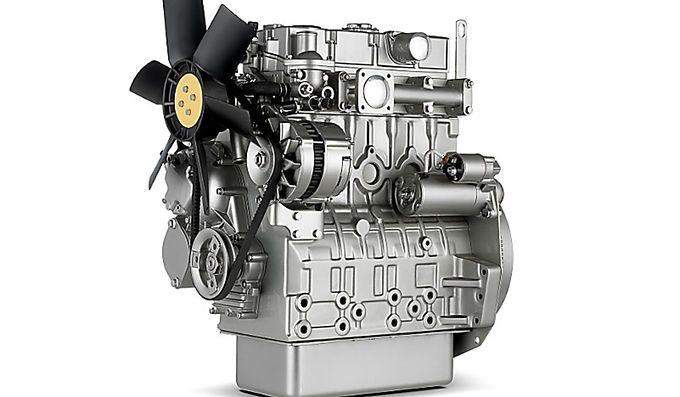

Perkins 400 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 400 Series	Industrial Diesel Engine	GN	4	38 kW	142.7 Nm @ 1800 rpm
Perkins 400 Series	Power Unit	GN	4	38 kW	140.6 Nm @ 1800 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2200-3000 RPM	31 kW	EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII	4 stroke	84 mm	100 mm
2800-3000 RPM	31.6 kW	EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII	4 stroke	84 mm	100 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
2.2 L	23.3:1	Natural	Indirect Injection	Counter-Clockwise	Liquid
2.2 L	23.3:1	Natural	Indirect Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
661 mm	464 mm	676 mm	184 kg
946 mm	513 mm	854 mm	218 kg

Rotation	Alternator Efficiency	Switchable
