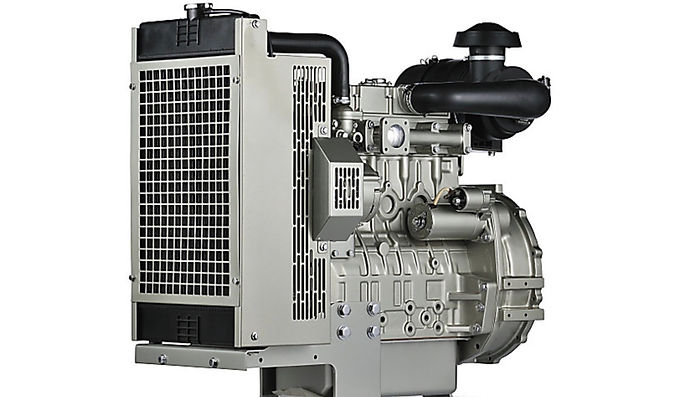

404D-22G

Perkins 400 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 400 Series	Genset		4

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
1500/1800 RPM		EU Stage IIIA/U.S. EPA Tier 4 interim		84 mm	100 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
2.2 L	23.3:1	Natural	Indirect Injection		Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
948 mm	498 mm	841 mm	242 kg	18-24 kWM	20-26 kVA (16-21 kWe)

Rotation	Alternator Efficiency	Switchable
Counter-Clockwise	87-89%	Yes
