SWF Power Products

1 (855) 327-2531

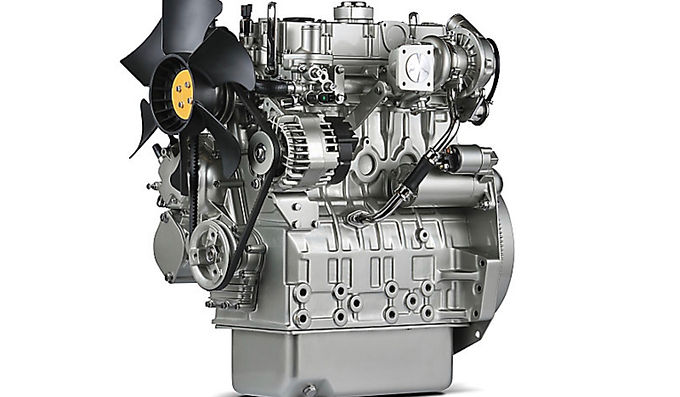

404D-22TA

Perkins 400 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 400 Series	Industrial Diesel Engine	GR	4	49.2	200 Nm @ 1800 RPM
Perkins 400 Series	Power Unit	GR	4	46.2 kW	195 Nm @ 1800 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2800 RPM	49.2 kW	ECE R96 IIIA	4 Stroke	84 mm	100 mm
2800 RPM	40.2 kW	EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent	4 Stroke	84 mm	100 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
2.2 L	23.3:1	Turbocharged Aftercooled	Indirect Injection	Counter-Clockwise	Liquid
2.2 L	23.3:1	Turbocharged Aftercoooled	Indirect Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
662 mm	489 mm	698 mm	206 kg
1050 mm	711 mm	997.5 mm	302 kg

Rotation	Alternator Efficiency	Switchable
