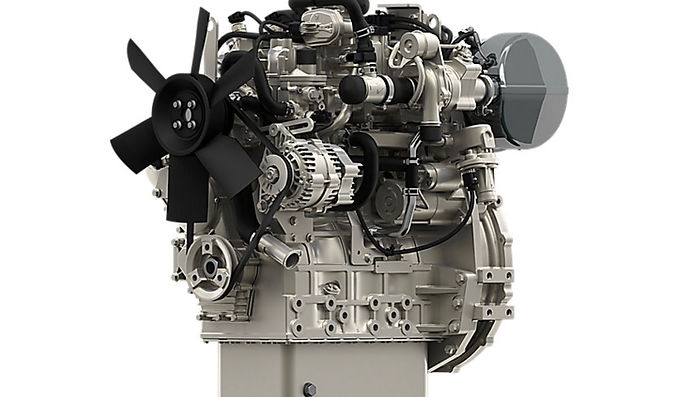

404J-E22TA

Perkins 400 Series

Engine Series	Engine Type	Engine Build	Cylinders	Maximum Power	Maximum Torque
Perkins 400 Series	Industrial Diesel Engine	N/A	4	55 kW	270 Nm @ 1600 RPM

Rated Speed	Minimum Power	Emissions	Cycle	Bore	Stroke
2800 RPM	55 kW	EU Stage V, U.S. EPA & CARB Tier 4 Final, Japan MLIT Step 4	4 Stroke	84 mm	100 mm

Displacement	Compression Ratio	Aspiration	Combustion System	Rotation from Flywheel End	Cooling System
2.2 L	17.0:1	Turbocharged	Direct Injection	Counter-Clockwise	Liquid

Length	Width	Height	Dry Weight	Gross Mechanical Output	Typical Electrical Output
807 mm	539 mm	757 mm	242 kg

Rotation	Alternator Efficiency	Switchable
